2017 Hot selling Hexagonal wire netting , chicken poultry farms, chicken wire net
Standard Size and Popular Specification:
| PVC Coated Hexagonal Wire Netting |
| Mesh | Wire Gauge (mm) | Width |
| Inch | mm |
| 1/2'' | 13 | 0.6—1.0 | 2'—2 m |
| 3/4'' | 19 | 0.6—1.0 | 2'—2 m |
| 1'' | 25 | 0.7—1.3 | 1'—2 m |
| 1—1/4‘’ | 30 | 0.85—1.3 | 1'—2 m |
| 1—1/2‘’ | 40 | 0.85—1.4 | 1'—2 m |
| 2‘’ | 50 | 1.0—1.4 | 1'—2 m |
| Anping Xinlong Wire Mesh Manufacture Co.,Ltd also offer other specification you need |
Note:
1.The thickness of PVC Coating is usually 0.2-4.0mm, others may arranged as per buyers' request;
2. Package: Normally each roll packed in water proof paper, Then in termo foil(Shrinked Plastic)
|
| Galvanized hexagonal wire netting |
| Mesh | Min. Gal.v.G/ | Width | Wire Gauge (Diameter) BWG |
| Inch | mm | Tolerance (mm) | SQ.M | | |
| 3/8'' | 10 | ±1.0 | 0.7mm—145 | 2'—1m | 27,26,25,24,23 |
| 1/2'' | 13 | ±1.5 | 0.7mm—95 | 2'—2m | 25,24,23,22,21 |
| 5/8'' | 16 | ±2.0 | 0.7mm—70 | 2'—2m | 27,26,25,24,23,22 |
| 3/4'' | 20 | ±3.0 | 0.7mm—55 | 2'—2m | 25,24,23,22,21,20,19 |
| 1'' | 25 | ±3.0 | 0.9mm—55 | 1'—2m | 25,24,23,22,21,20,19,18 |
| 1—1/4'' | 31 | ±4.0 | 0.9mm—40 | 1'—2m | 23,22,21,20,19,18 |
| 1—1/2'' | 40 | ±5.0 | 1.0mm—45 | 1'—2m | 23,22,21,20,19,18 |
| 2'' | 50 | ±6.0 | 1.2mm—40 | 1'—2m | 23,22,21,20,19,18 |
| 2''—1/2'' | 65 | ±7.0 | 1.0mm—30 | 1'—2m | 21,20,19,18 |
| 3'' | 75 | ±8.0 | 1.4mm—30 | 2'—2m | 20,19,18,17 |
| 4'' | 100 | ±8.0 | 1.6mm—30 | 2'—2m | 19,18,17,16 |
Note:
1, The above tolerance comply with standard EN 10223-2:1997;
2, Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped galvanized netting.
|
Description of our hexagonal chicken wire mesh:
Assortments Available:
Electro Galvanized before Weaving
Electro Galvanized After Weaving
Hot Dipped Galvanized before Weaving
Hot Dipped Galvanized after Weaving
PVC Coated before or after Weaving
Stainless Steel Wire
Galvanized Drawn Iron Wire
Hex. wire netting in normal twist
Hex. wire netting in reverse twist

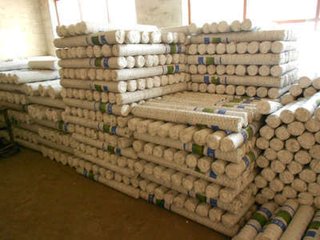

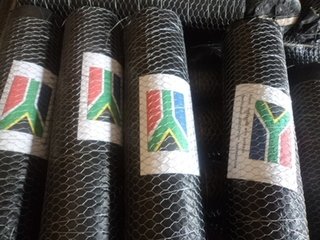

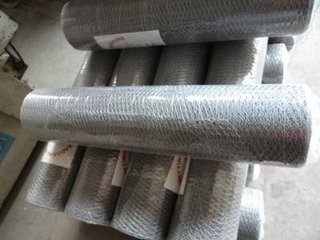

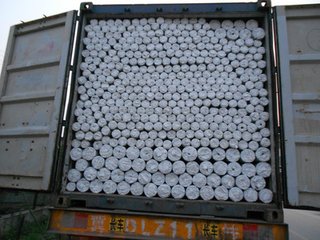

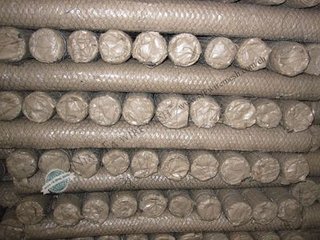

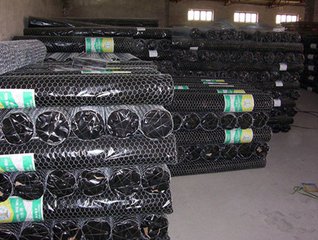

Packing & Delivery
Attention pls
【Packing】Packed in rolls with moisture proof paper or otherwise according to specific requirements.
【Note】Other specifications are available at the Customers' request.

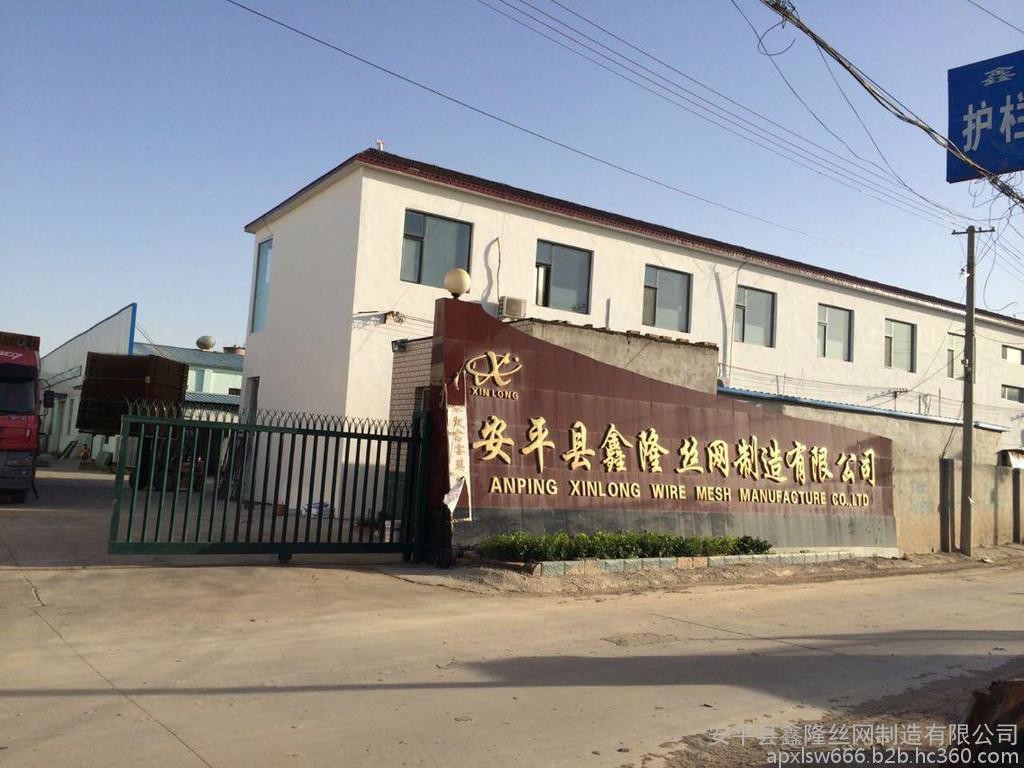

Our Company
Our company was founded in 1989, having some son companies, including wire-drawing, mesh-welding,
mesh-weaving, galvanizing, PVC-coating and so on. As a leading manufacturer and self exporter, we hope
to establish long, friendly business relations with you in future, with our full sincerity and confidences.
Any question ,pls kindly contact us for free.
